ESK201BP wireless scoreboard

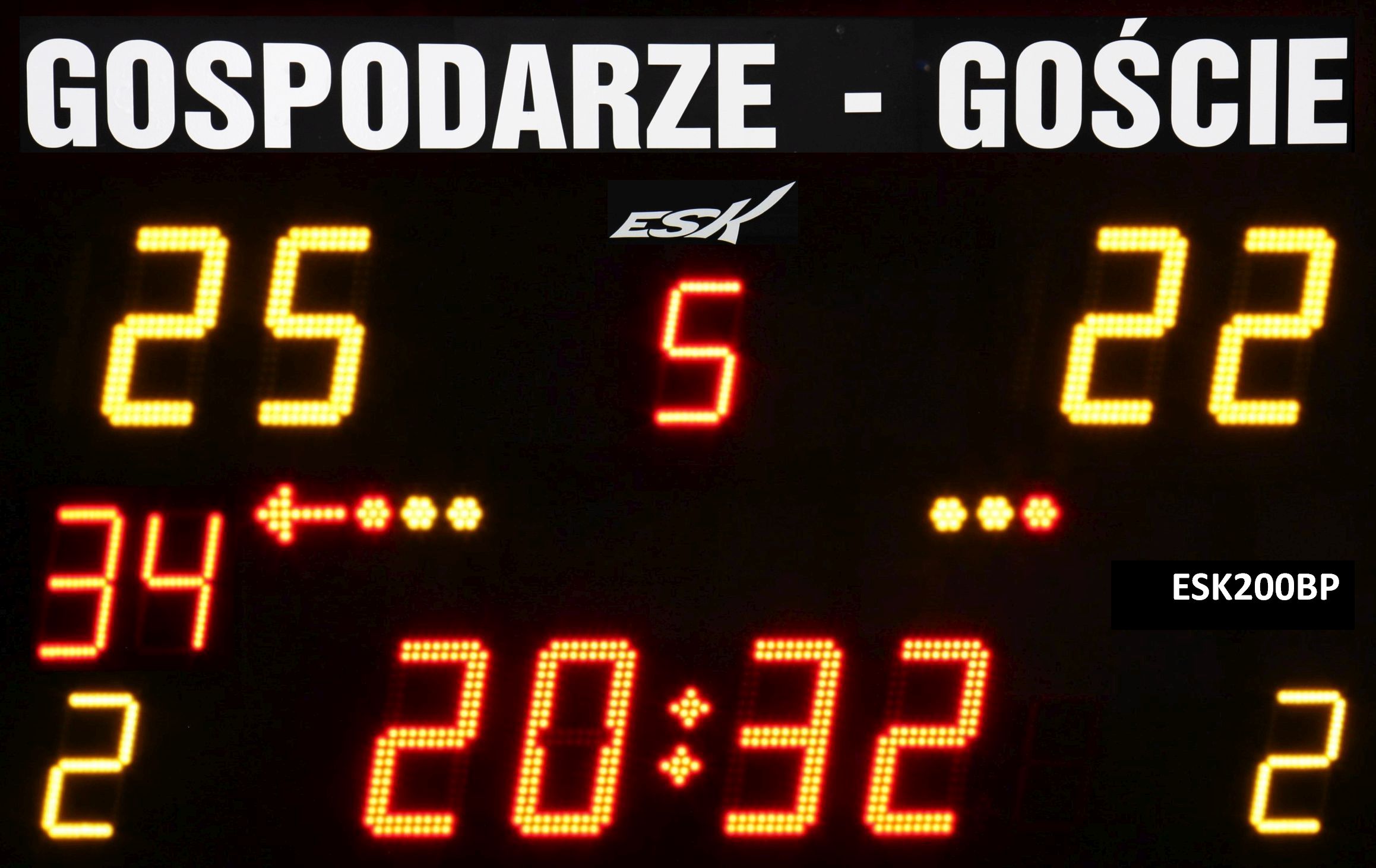

ESK200BP wiresless scoreboard with permanent team name labels

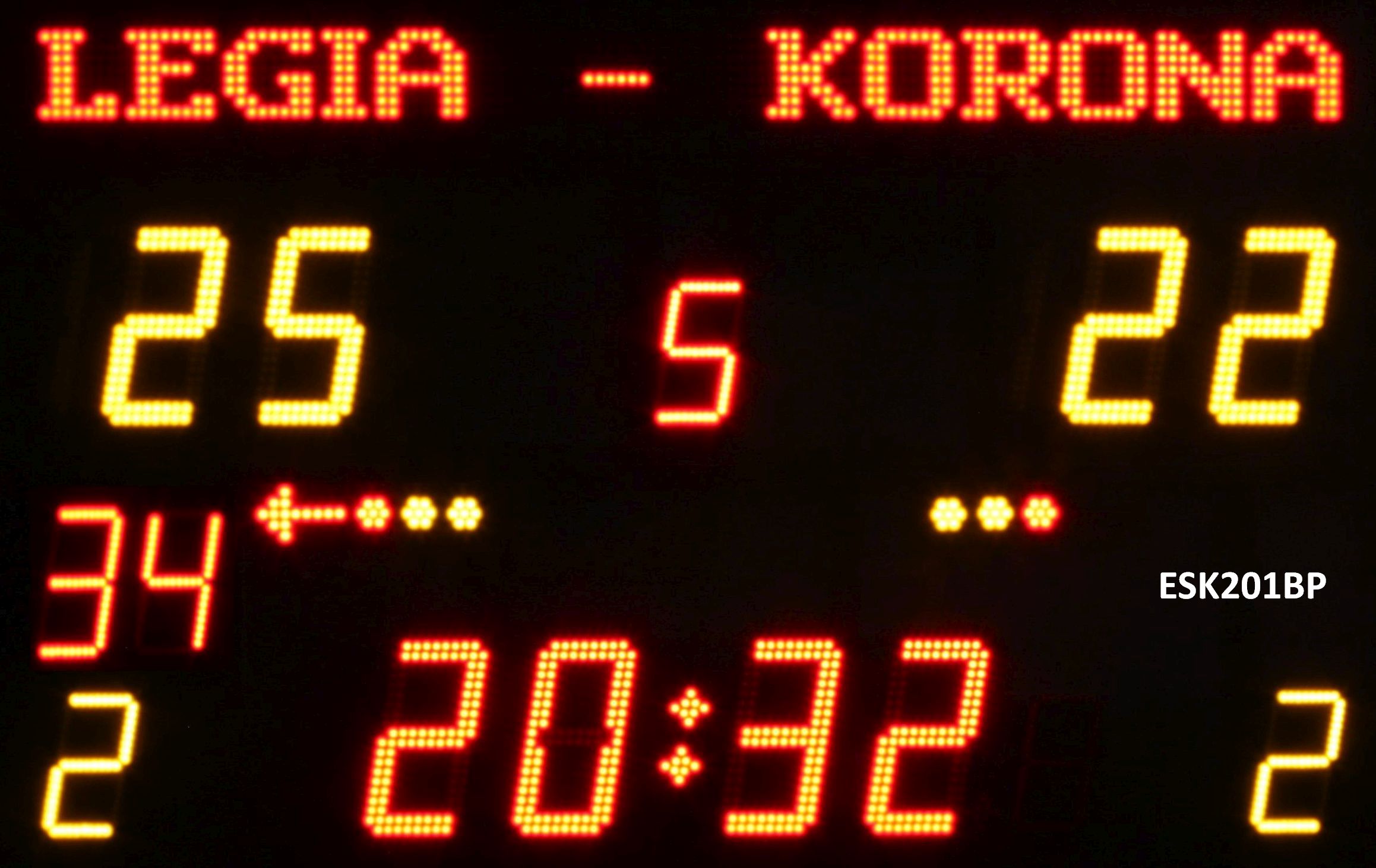

ESK201BP wireless scoreboard with team name display
CA72 remote control, 24 seconds timer for basketball

ESK200BP wireless scoreboard with  HOME - AWAY label

ESK201BP wireless scoreboard with team name display

CA72 scoreboard control with a professional 24sec control for basketball

ESK201BP specifications:

  • Size 150*100*6 cm, digits 22cm and 15 cm, visibility 80m.
  • Professional device for basketball, 3x3 basketball, volleyball, handball, futsal, floorball, tennis and other sports
  • Aluminum housing painted with black powder varnish with anti-reflective face plate resistant to ball impact
  • Automatic and fully professional game support with the ability to change the game time length and break length even between game periods
  • High quality high brightness LEDs that shine beautifully
  • Displaying match results using up to 3 digits (22cm digits)
  • Game time clock with an accuracy of 0.1 seconds (22cm digits)
  • Fauls of basketball teams or won sets in volleyball (15cm digits)
  • A digit displaying the period number (digits 15cm)
  • 3-3 dots indicating the number of time outs called
  • Arrow indicating which team serves in volleyball (automatic)
  • Independent TIME OUT clock (digits 12cm)
  • Measuring time between game periods in the place of game time display during brakes
  • Graphics for displaying team names and advertisements on a surface of 145 * 10 cm (capacity 24 letters). Library for 126 team names. Once entered, the team names will be remembered for 100 years or until the next change
  • Manual and automatic siren
  • After the competition you can set the scoreboard to display time or the time alternating with the temperature



Shot clock for basketball



24 seconds time (shot-clock) for basketball:

  • Two independent 24 seconds timers can be connected for basketball, both basic without peridod time (ESK110, ESK210) and professional with period time (ESK310, ESK410)
  • Professional control of the 24 seconds timers with an independent controller
  • In the absence of independent 24 seconds timer you can enable timing of 24 seconds at the TIME OUT area of the main board

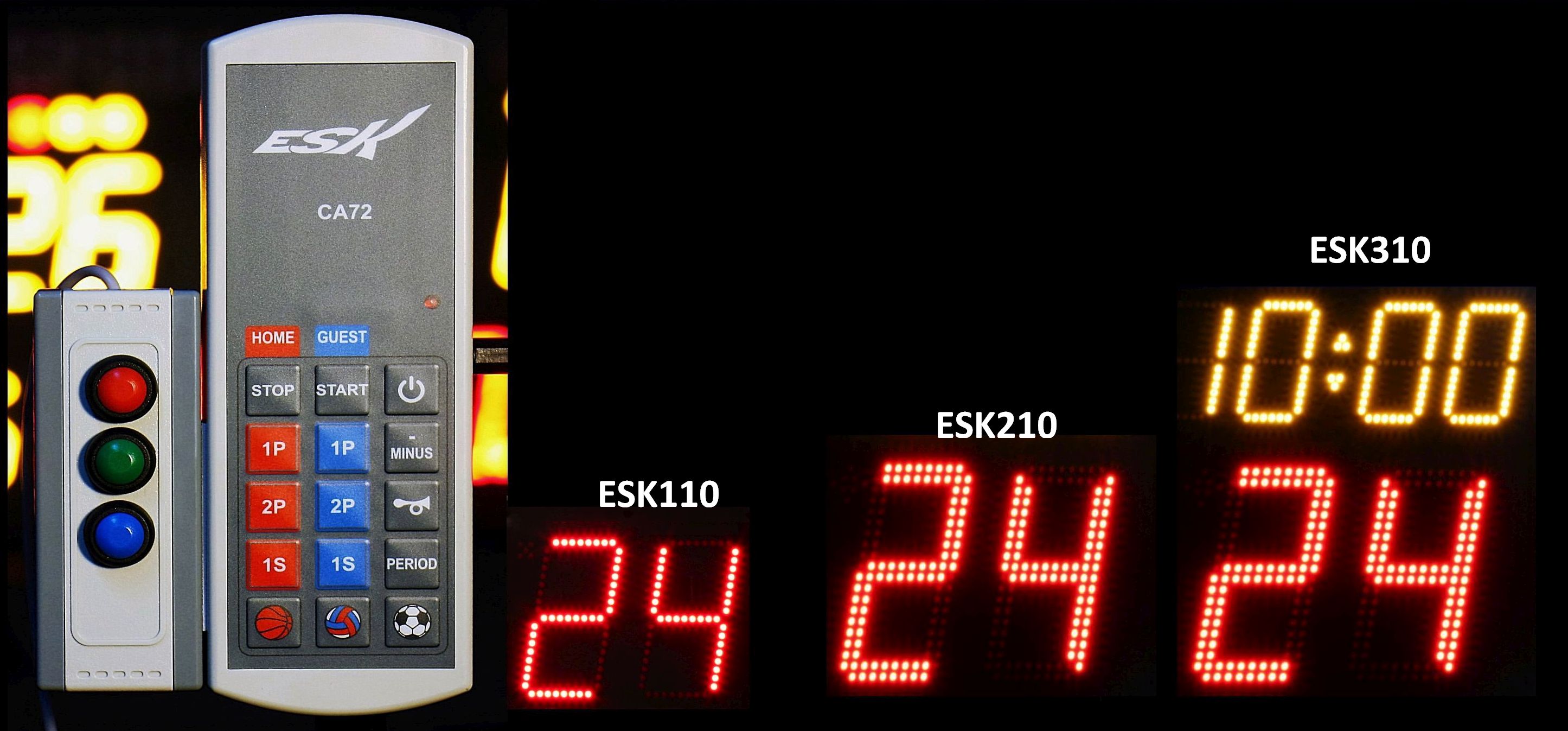

24 seconds timer (shot-clock) models

  • ESK110 24 seconds timer (15cm digits)
  • ESK210 24 seconds timer (22cm digits)
  • ESK310 24 seconds timer (22cm digits) with period time (12cm digits)



Parameters of displayed digits

  • LEDs with high brightness of 500mcd and a viewing angle of 130 degrees
  • 30cm digits: 217 LEDs per digit
  • 22cm digits: 112 LEDs per digit
  • 15cm digits: 56 LEDs per digit
  • 12cm digits: 42 LEDs per digit



Technical data

  • Mainboard power supply: 230V
  • Battery life of the wireless remote control (3 * AA): 48 months
  • Wireless remote control range: 250m
  • The 24 seconds timers are connected to the main board with OMY 3 * 0.5mm cable (17V safe voltage)
